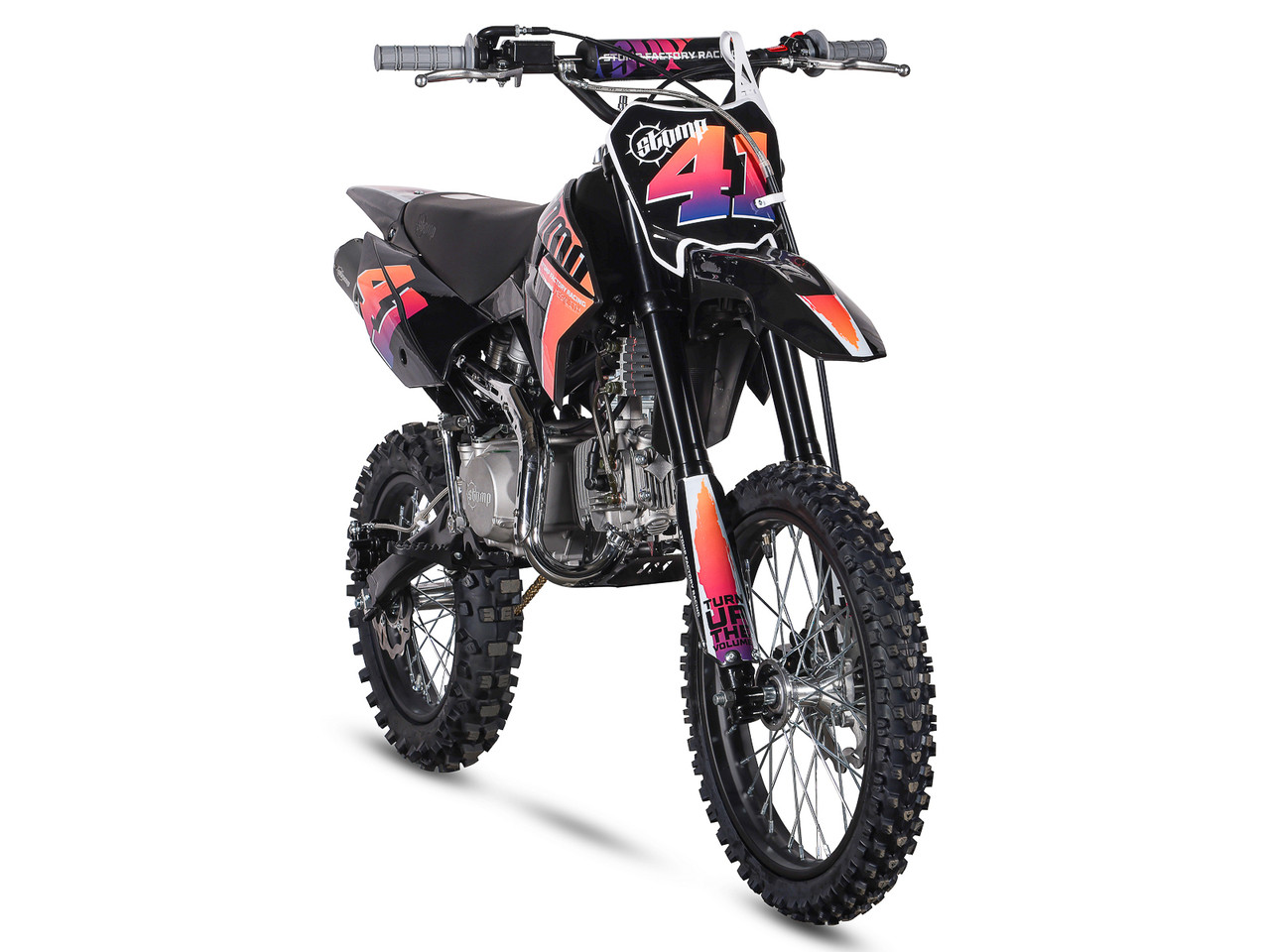

Stomp Z3-140 Big Wheel

Product Description

The Z3-140 Big Wheel still boasts the ‘exclusive to Stomp’ SR140C Z40 cam engine. Stomp buy in the YX140 and then fettle the engine with stiffened valve springs & a high lift race cam (known as the Z40 cam). The result is 2hp more than any other YX140 engine on the market. It might not be quite Zhongshen 155 territory but its most of the way there and significantly cheaper to install than the ZS155. If you look after the SR140C, it will prove a very reliable and cheap engine to run.

With new stunning neon yellow race graphics The new look Z3-140 also comes with updated pro foot pegs and polished hubs to complete the new look.

Stomp Racing SR140C Z40 race cam
Start-in-gear, all-up 4 speed gearbox
14hp at rear wheel
26mm race carb with double foam filter
Aluminium shot blast finished cases with Stomp logo
CNC oil cooler with braided steel hoses
SDG2 heavy duty cradle frame for ultimate stiffness and control
Removable rear subframe & bolt on engine hangers
Revised light-weight tig welded 430mm swing arm
Extended 735mm cnc machined usd oil filled forks
Drop forged black anodised triple clamps (yokes)
Nitrogen filled 290mm piggy back shock with steel bushes
17/14 sdg wheels with steel rims for strength
Superb durable and tough innova pattern mx tyres
Improved and revised light-weight brake master cylinders and calipers
Vented light-weight rotors
Alloy oval exhaust muffler
Mandrill bent big bore 32mm OD race pipe
Features full length alloy heat shield for style and protection
Pro-taper style minibike bars
Renthal style soft rubber grips
Forged alloy clutch & brake levers
420 KMC chain with engraved alloy/nylon chain guide
420 41t lightweight durable rear sprocket
420 16t front sprocket
Fold back gear selector
NEW upgraded PRO footpegs
NEW reinforced poly resin 5.5 ltr fuel tank with alloy cnc filler cap
NEW revised firmer seat with Stomp logo
NEW Detroit hi impact polypropylene plastics
Wrap around crf number board with front brake pipe tidy
New Stomp neon yellow race graphics kit with Stomp race sponsor’s logos
Seat height 82cm
Dry weight 71kg
Weight limit 15 stone
